Extrusion Compound Machine Supplier

Publish Time: 2021-01-10 03:06 Author: Site Editor Visit: 868

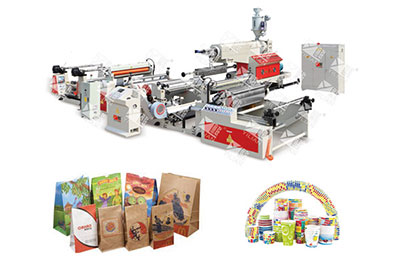

SJFM1100-2000A Extrusion lamination machine

Brief introduction:

Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.

Application:

paper pe coating, woven PP sack lamination, non woven lamination and so on.
It is widely used in disposable paper cup,oil and water proof paper bag, fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.

Features:

1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.
2 high efficient corona device
3.Easy and quick filter screen exchange
4.Double station unwinding and rewinding, automatic non stop roll exchange

Main technical parameters:

model	SJFM-800	SJFM-1100	SJFM-1300	SJFM-1600	SJFM-1800
Width of die	900mm	1200mm	1400mm	1800mm	2000mm
width of finished product	400-700mm	500-1000mm	600-1250mm	800-1500mm	900-1700mm
Max. speed	100-150m/min	100-150m/min	100-150m/min	100-150m/min	100-150m/min
Coating thickness	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
L/D ratio for screw	Φ80mm×30	Φ95mm×30	Φ105mm×30	Φ120mm×32	Φ140mm×32
diameter for roll unwinding and rewinding	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm
overall size	9600×8000×3200	9600×8300×3200	9600×8600×3200	9600×9000×3200	9600×9300×3200
LWH(MM)
power	60kw	70kw	80kw	100kw	130kw
compounding roller	Φ510mm	Φ510mm	Φ510mm	Φ510mm	Φ610mm
applicable for base material	Paper/non woven /PP woven sack,etc
Extrusion resin	LDPE、LLDPE、PP、EVA、EAA,etc

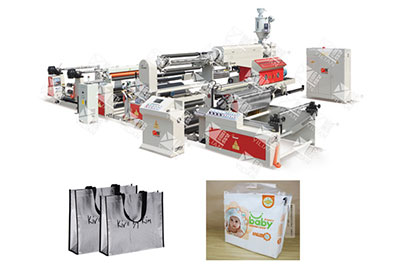

SJFM 1100-2000B high speed extrusion film lamination machine

Brief introduction:

Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.
Application: paper pe coating, paper foil lamination, woven PP sack lamination, non woven lamination and so on.
It is widely used in disposable paper cup,oil and water proof paper bag, fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.

Features:

1.Double station unwinding and rewinding system, automatic and non stop roll exchange
2.PLC One-touch centralized controls，advanced touch screen control system.the extruder can cooperate compounding body speed automatically, to reach set film thickness.
3. high efficient corona device, hydraulic for the network, are the first domestic, can effectively enhance the product peel strength.
4. Three roller compounding mechanism, back pressing roller makes compounding roller to force evenly and compounding firmly.
5. Peeling off silicone roller: compounding products peels off from cooling roller easily.
6. Compounding and filling regulating roller can overcome defects such as uneven of film thickness.
7. Disc slitting knife edge-cutter: sharp knife edge
8. High pressure blower sucks scrap edge quickly.
9. Car type extrusion machine
10.T- type die head
11.Automatic and quick hydraulic filter screen exchange ( Our Factory patent)
12.Surface rewinding roller (Double work-station ,Non-stopping)
13.Embossing function is avaliable

Technical parameters:

model	SJFM-800	SJFM-1100	SJFM-1300	SJFM-1600	SJFM-1800
width of finished product	900mm	1200mm	1400mm	1800mm	2000mm
width of finished product	400-700mm	500-1000mm	600-1250mm	800-1500mm	900-1700mm
max speed	100-150m/min	100-150m/min	100-150m/min	100-150m/min	100-150m/min
Coating thickness	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm	0.01-0.1mm
L/D ratio for screw	Φ80mm×30	Φ95mm×30	Φ105mm×30	Φ120mm×32	Φ140mm×32
diameter for roll unwinding and rewinding	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm	Φ1300mm
overall size	9600×8000×3200	9600×8300×3200	9600×8600×3200	9600×9000×3200	9600×9300×3200
LWH(MM)
power	60kw	70kw	80kw	100kw	130kw
compounding roller	Φ510mm	Φ510mm	Φ510mm	Φ510mm	Φ610mm
applicable for base material	BOPP/BOPET/BOPA/CPP/CPE)/PAPER/Aluminum foil/non woven fabric
Extrusion resin	LDPE、LLDPE、PP、EVA、EAA,etc

Supplier information

Wenzhou Winrich Machinery Co.,ltd is located in Pingyang county,Wenzhou city of Zhejiang Province,China, established in 1996. It covers land area of 15,800sqm.standardized workshop of 11,000 sqm,and holds 50-100 sets machines production every month,which is the largest in Wenzhou.

Company's main products are:extrusion coating and lamination machines, slitter and rewinder, paper cutter and sheeter, which are widely used in paper, cloth, metal foil, plastic bags, non woven fabric and other materials. Machines are pretty popular in Southeast Asia, Middle East, Eastern Europe, South America, Africa and other countries, it also has occupied 80% of Chinese market. Strong technical team, sophisticated production process, perfect testing means, excellent management level, timely after-service, makes it a professional and brand manufacturer of printing and packaging equipment in China.
